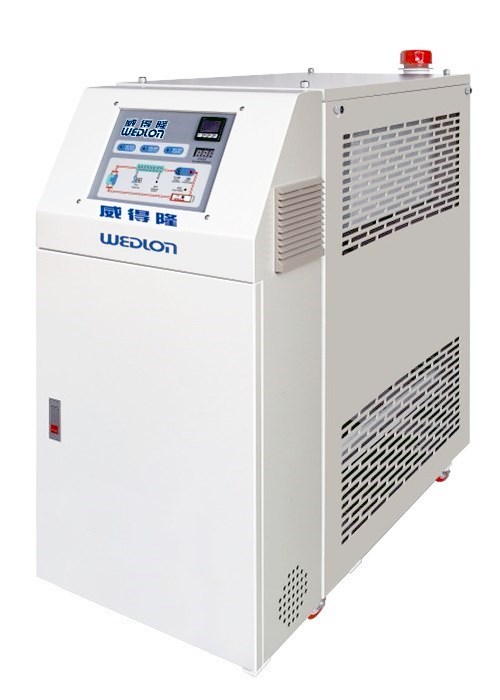

Mold Temperature Controller

Mold Temperature Controller

Product ID: TOH SeriesInquiry

Description

The oil circulation mold temperature controller is major for controlling the temperature of the mold in the plastic injection molding machine.



Features

  • The temperature control adopted micro processor (P.I.D) touching type ,there is stored automatic calculation inside, precise and reliable, it can control within ± 1°C and save electricity over 35%.
  • Medium circulation pipe with stainless steel.
  • All series adopting speck pump from Germany.
  • Circuit beaker.
  • Motor reverse protective lamp.
  • Oil shortage protective lamp.
  • Pump overload protective lamp.
  • Overheat Thermostat protective lamp.
  • By-Pass system.
  • Buzzer.
  • Inlet temperature digital display gauge.
  • Phase failure protecter.
  • OEM/ODM Product
  • Branded Product
  • Buyer's Label Offered



Specification Table

Model TOH-300(4HP)
Temp. Control Range 60 ~ 300°C
Temp. Control Accuracy ± 1°C
Temp. Control Method Double proportional integral derivative
Power 3Ø 220V 60Hz (or other)
Heat Transfer Medium Heat Transfer Oil
Cooling Method Indirect Cooling
Heating Capacity 24 or 36 Kw
Pump Power 4 HP
Max Pump Flow 100 l/min
Max. Pump Pressure 13 kg/cm²
Expansion Tank Capacity 30 liter
Cooling Water Pipe 1/2"
Circulation Oil Pipe 1"
Machine Size 1,050 x 450 x 1,100 mm
Weight 130 Kg
