Drawer Type Mold Rack for Wedlon Automation Co., Ltd.

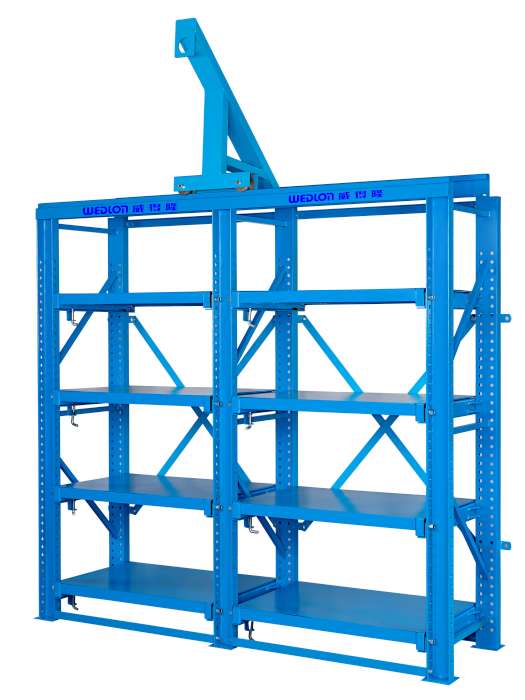

Drawer Type Mold Rack

Product ID: RD2-4H1Inquiry


The Drawer Type Mold Rack is major for placing platic mold for convenience.



  • Reduce mold-locating and change-over time; high speed lifting and lowering therefore saves manual laboring.
  • Heavy objects like molds & tools can be easily stored, being in good order and saves space.
  • Each tier of rack can load 1000Kg.
  • Hoist load 800Kg.
  • Hoist travels horizontally.
  • Height of drawer type racks can be freely adjusted.
  • Units can be connected to limitless lengths. According to site space.
  • Mold rack is completely K/D format and can be easily and quickly assembled.
  • Special drawer type mold rack can be ordered.
  • OEM/ODM Product
  • Branded Product
  • Buyer's Label Offered


Specification Table

Load Of Each Tier 1000KG
Load Of Hoist 800KG
Length Of Each Tier 910 MM
Width Of Each Tier 610 MM
Height Of Each Tier Adjustable
Total Length Total tiers + 0.1M
Total Width 615 mm
Total Width(with the Hoist) 860 mm
Total Height(without the Hoist) 2000 mm
Total Height(with the Hoist) 2800 mm
