Chilling Machine for Wedlon Automation Co., Ltd.

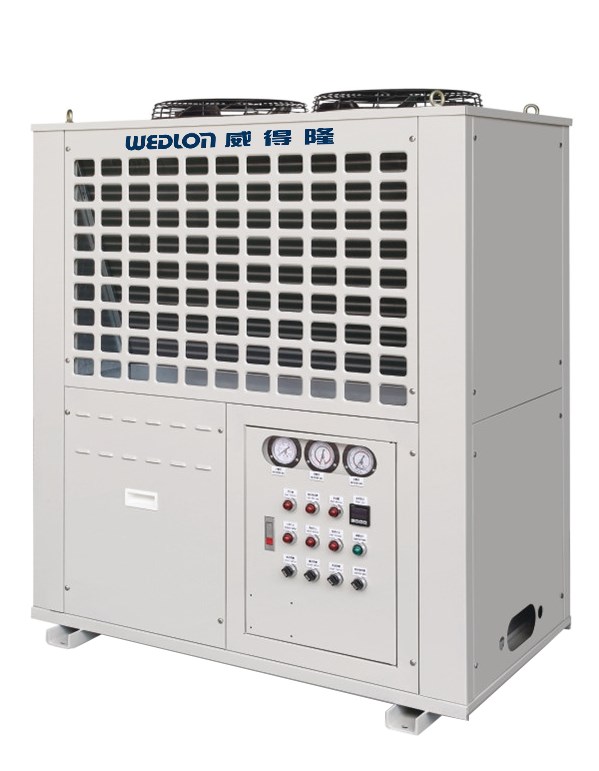

Chilling Machine

Product ID: CA SeriesInquiry

Description

The Chilling Machine-Cooling Machine is major for cooling the mold of plastic injection molding machine.



Features

  • Employing all-new, imported compressor, complete with all-new import certificates.
  • Employing superb imported components, with longer terms of service.
  • High efficiency evaporator and cooling condenser in use, to help save no less than 30% of your power rates.
  • High precision digital display, for the temperature control.
  • Employing two sets of compressors which can be used jointly or independent. (Over C-10)
  • Complete with safety protection and error indication system.
  • Micro-processing controller, easy operation.
  • The weld of brass pipe is non-exidization (nitrogen flushing).
  • OEM/ODM Product
  • Branded Product
  • Buyer's Label Offered



Specification Table

Model UNIT CA-2 CA-5 CA-7 CA-10  CA-15 CA-20 CA-25 CA-30
Control range °C 8°C ~ 30°C 8°C ~ 30°C 8°C ~ 30°C 8°C ~ 30°C 8°C ~ 30°C 8°C ~ 30°C 8°C ~ 30°C 8°C ~ 30°C
Power   3φ220V 60HZ
(or other)
3φ220V 60HZ
(or other)
3φ220V 60HZ
(or other)
3φ220V 60HZ
(or other)
3φ220V 60HZ
(or other)
3φ220V 60HZ
(or other)
3φ220V 60HZ
(or other)
3φ220V 60HZ
(or other)
Cooling capacity BTU/HR
(60HZ/50HZ)

24,000/19,700

60,000/51,700

90,000/74,700

120,000/103,500

180,000/152,800

2400,000/202,000

300,000/248,000

360,000/296,000
Comp power HP 2 5 7 10
(5 x 2)
15
(7-1/2 x 2)
20
(10 x 2)
25
(12-1/2 x 2)
30
(15 x 2)
Pump power KW 0.56 0.96 0.96 1.23 1.23 1.9 1.9 2.9
Max. Pump pressure KG/cm² 2.5 2.5 2.5 2.6 2.6 2.8 2.8 4.6
Max. Pump flow L/Min 66 150 150 200 200 200 266 266
Max. Power supply KW 1.9 4.5 6.4 9 1.3 16.5 21 24.8
Tank capacity Liter 25 50 50 110 175 175 250 250
Chilling water pipe Inch 3/4 1-1/4 1-1/4 1-1/2 2 2 2-1/2 2-1/2
Cooling water pipe Inch 3/4 1-1/4 1-1/4   1-1/2 2 2 2-1/2
L x W x H cm 108 x 60 x 130 125 x 65 x 140 138 x 85 x 147 158 x 85 x 166 211 x 85 x 172 224 x 90 x 172 251 x 113 x 181 273 x 113 x 181
Weight KG 180 340 420 720 860 1060 1200 1400
