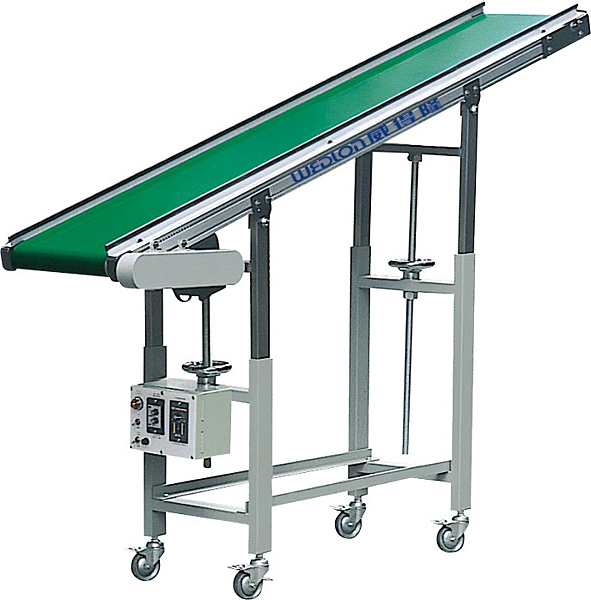

The Conveyor Equipment-Robot Type conveyers are mojor for transporting the robot take out the runners, sprues, and fine products from the mold of plastic injection molding machine.
Features
- Any angles can be adjusted randomly.
- Can be conveyed directly or intermittently.
- The conveying speed can be dusted randomly.
- Adopt imported, high quality belt which anti-electrostatic, heat-proof and oil-proof.
- Specially designed sizes allow to be customized.
- OEM/ODM Product
- Branded Product
- Buyer's Label Offered
Specification Table
| Model | RDH 30-200 | RDH 30-250 | RDH 30-300 |
| Belt Width | 300 mm | 300 mm | 300 mm |
| Machine Length | 2,000 mm | 2,500 mm | 3,000 mm |
| Machine Width | 360 mm | 360 mm | 360 mm |
| Machine Height (Min) | 800 ~ 1,000 mm | 800 ~ 1,000 mm | 800 ~ 1,000 mm |
| Machine Height (Max) | 1,200 ~ 1,800 mm | 1,200 ~ 1,800 mm | 1,200 ~ 1,800 mm |
| Conveying Capacity | 12 kg | 12 kg | 12 kg |
| Power | 60 w | 60 w | 60 w |
| Conveying Speed | 5 m/min | 5 m/min | 5 m/min |
| Belt Character | Heat-proof, Oil-proof Anti-electrostatic |
Heat-proof, Oil-proof Anti-electrostatic |
Heat-proof, Oil-proof Anti-electrostatic |
